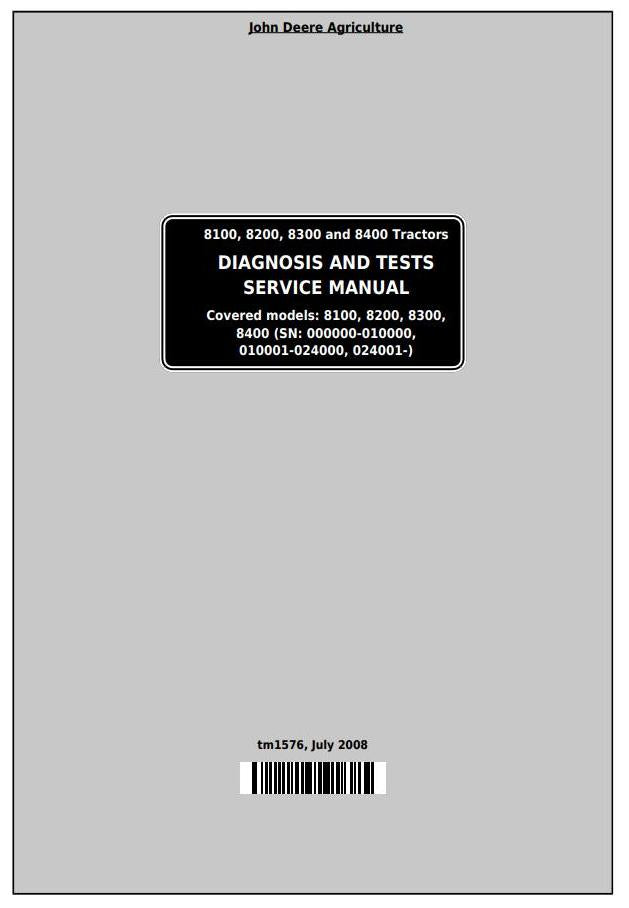

TM1576 - John Deere 2WD 8100, 8200, 8300, 8400 MFWD Tractor Operation, Diagnosis and Test Service Manual

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.


Covered models:
  8100
  8200
  8300
  8400

Contents:
   Foreword
   Dealer Predelivery Information Form
   General Information
      Safety
      General Information
   Engine
      Component Removal and Installation
      Engine Repair
   Fuel and Cooling Systems
      Diesel Fuel System
      Air Intake System
      Engine Cooling System
      Coolers and Air Conditioning Condenser
   Electrical
      Connectors
      Wiring Harness Routings
      Charging Circuit
      Starting Circuit
      Relays, Fuses, Solenoids, and Switches
      Monitoring Systems and Sensors
      Armrest Control
      Implement and Accessory Connectors
      Convenience and Accessory Components
   Transmission
      Component Removal and Installation
      Miscellaneous Repair
      Transmission
   Drive Systems
      Component Removal and Installation
      Rear Axle Assembly
      Outboard Planetary Final Drive
      PTO
      Steering Gears
      Mid-Frame Drive Shafts
   Steering and Brakes
      Component Removal and Installation
      Steering Column
      Steering Wheel Position Input Assembly
      Steering Pump
      Steering Motor
      Brake Valve
      Brake Components
   Hydraulics
      Component Removal and Installation
      Hydraulic System Repair and Cleanup
      Tandem Hydraulic Pump (Transmission Control-Charge)
      Secondary Hydraulic Pump (Hitch-SCV)
      Hydraulic Filter Bypass
      Hitch Valve, Selective Control Valves, and Couplers
      Hitch Valve, Selective Control Valves, and Couplers — CAN Controlled
      Hitch
   Miscellaneous
      Hood
   Operator Station
      Component Removal and Installation
      Heating, Ventilating, and Air Conditioning (HVAC)
      Air Conditioning System
      Air Suspension Seat
      Armrest
      Cab Door and Windshield
   Track Frame and Components
      Tracks
      Tension Cylinder and Accumulator
      Track Frame
   Dealer Tools
      Dealer Fabricated Tools
      Essential and Recommended Tools

   Language: English
   Format: PDF, 2687 pages

Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
